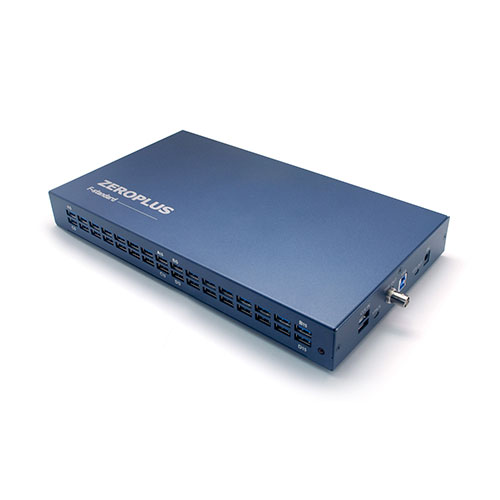

특 징
Sample Rate
Internal Clock (Timing Mode) : up to 1GHz
External Clock (State Mode) : up to 200MHz(dual edge)
Channels : 40ch(LAP-F140xxM) or 64Ch(LAP-F164xxM)
Memory Depth per channel : 4, 8, 16, 32, 64 Mb
40 channels :
4 Mb memory per channel; model name LAP-F1404M
64 Mb memory per channel; model name LAP-F14064M
64 channels :
4 Mb memory per channel; model name LAP-F1644M
64 Mb memory per channel; model name LAP-F16464M
Triggering
6개의 하드웨어 트리거 가능 (I2C,I2S,SPI,SVID,UART,CAN2.0B)
Pre/Post Triggering : Store both pre-trigger and post-trigger data; choose from 0-100% pre-trigger data
Trigger Channels : 32 (the channels are divided in 2 groups; OR triggering between the 1st group {32. ch} and the 2nd {8/32 ch.} is possible)
Trigger Delay : Delay acquisition after trigger event based on duration (time) or number of samples (memory)
Trigger Events : State / Edge / Pattern / Pulse-width / Interval (Time)
Trigger Event Bars : 250
Trigger Out : Send a trigger signal that sets off another instrument
Trigger Pass Counter : 1 to 65,535
Trigger Sequence Levels : 256
Trigger Voltage : 4 simultaneous levels – 1 for each of the 4 ports
Dimensions : 322 x 180 x 38 mm
Operating Systems Win 8.1 recommended / Win 7 32-bit and 64-bit / Win 10 (not certified)
EMMC5.1/SD3.0 LA Mode, Protocol decoder and Trigger
110 여가지 이상의 protocol decoders
Active Probe(기본 제공)
Bandwidth : 100MHz
Channel Folding : active 채널만 저장
DSO 연결
Data transmission : USB 3.0 (compatible with 2.0)
Special software features - Zooming and panning
- Waveform and UI Customization
- State list and Waveform view
- Packet list
- Waveform Navigator
- Memory view
- Statistic
- File Comparison
Phase error : < 3 ns
Power supply
AC (IN) : 100~240V, 50~60Hz
DC (OUT) : 9V/5.55A
Certifications : FCC / CE
Software
사 양
옵 션
eMMC5.1/SD3.0 Data : Sample and decode all eMMC5.1/SD3.0 signals
Long-Time Records : Stream sampled data directly to hard drive for very long acquisitions
무단수집및 복재를 금합니다 .
상품정보고시
| 제품명 |
로직애널라이저, 로직분석기, LAP-F16432M |
| 판매가격 |
7,425,000원 |
| 브랜드 |
ZEROPLUS |
| 제조사 |
ZEROPLUS |
