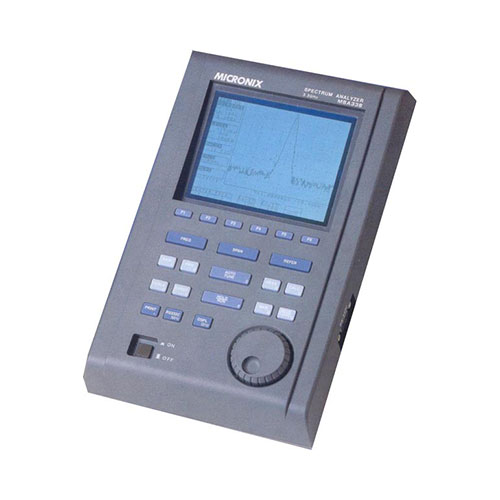

MSA338

MSA338TG

MSA338E

MSA358

Frequency range

50kHz~ 3.3GHz

50kHz~8.5GHz

장착옵션

x

TG (5M~3.3G)

EMI filter

(PK,QP,AV)

x

Freq Span

0Hz,200kHz~2GHz(1-2-5 step), 3.3GHz

0Hz,200kHz~5GHz(1-2-5 step), 8.5GHz

Sweep time

10ms ~ 30s(1-3 step), Span0~ 2GHz,Auto

30ms~30s,Span 5GHz,Auto

RBW

3kHz~3MHz(1-3 step),Auto

3k,9k,30k,120k,300k,

1M,3M,Auto

3kHz~3MHz(1-3 step),Auto

VBW

100Hz ~ 1MHz(1-3 Step), Auto

Input Damage

+27dBm(CW),25VDC

Amplitude

+10dBm ~ -60dBm, 1dB step

기타

주파수설정분해능(100KHz), SMA(J) connector, Display Scale(2,10dB/div)

일반사항

4.7inch Mono LCD, RS232C interface, 5V/4A,(Battery 4.8V/4200mAh)

표준 부속품

AC Adaptor MA300, Carrying case, Accessory pouch, Manual
