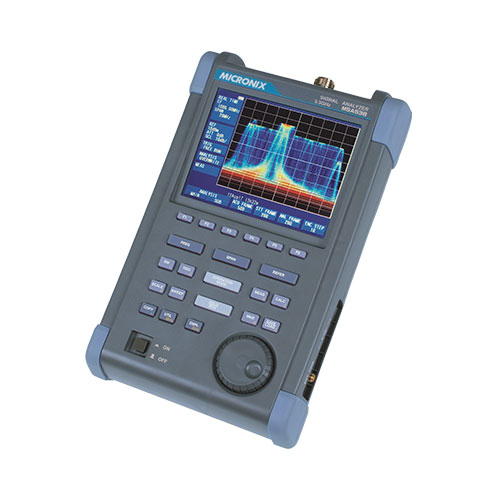

MSA538

MSA538TG

MSA538E

MSA558E

MSA558

Frequency range

20kHz~ 3.3GHz

20kHz~8.5GHz

장착옵션

x

TG (5M~3.3G)

EMI filter(PK,QP,AV)

x

Freq Span

0Hz,100kHz~2GHz(1-2-5 step), 3.3GHz

0Hz,100kHz~5GHz(1-2-5 step), 8.5GHz

Sweep time

10ms ~ 30s(1-3 step), Span0~ 2GHz,Auto

30ms~30s,Span 5GHz,Auto

RBW

300Hz~3MHz(1-3 step),Auto

9k,120k,1M 추가

300Hz~3MHz

VBW

100Hz ~ 1MHz(1-3 Step), Auto

Real time Mode

IQ Memory (64Mbyte), Max frame(16,383),

Frame time : 30.1us(span20MHz) to 30.1ms(Span 20kHz)

분석기능 (SPAN: 20kHz ~20MHz)

Spectrum Analysis(window : 4-term Blackman-Harris window)

Spectrogram Analysis(3차원: x (time), Y(Frequency),Z(Power)

Overwrite Analysis (720 Frame/sec: 200/500/1000/2000/5000,무한대)

Time domain Analysis(Power : Time,Freq:Time,Phase:time,IQ:time, Q:I data)

Input Damage

+27dBm(CW),25VDC

Amplitude

+10dBm ~ -60dBm, 1dB step

기타

주파수설정분해능(100Hz), N(J) connector, Display Scale(2,5,10dB/div)

일반사항

5.7inch Color LCD, USB interface, 9V/2.6A,(Battery 7.4V/5000mAh)

표준 부속품

AC Adaptor MA500, Carrying case, Accessory pouch, Manual
