Fiillm Free Shriink Testter
Modell:: F0006


Linear Thermal Shrinkage or Free Shrink is defined as the irreversible
and rapid reduction in linear dimension, in a specified direction,
occurring in film exposed to elevated temperatures.
Shrinkage in this way is related to the material of the film and internal
stresses locked into the film (by the manufacturing process).

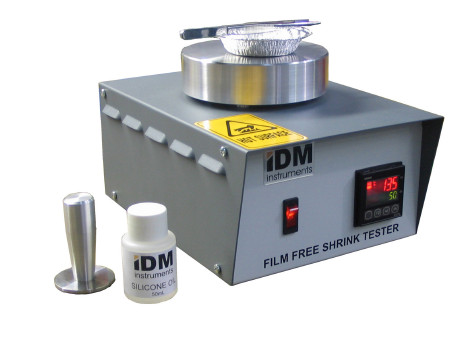

The Film Free Shrink Tester consists of a small, circular
aluminium block, electrically heated and controlled by a
temperature controller. Using aluminium foil discs with silicon
oil, the test piece is placed into it to accelerate shrinkage at
selectable temperatures.

Applications:
• Flexible Packaging
• Shrink Packaging

Features:
• Digital temperature controlled hot-plate
• Heating plate: Ambient – 250°C
• Specimen cutting knife
• Specimen cutting template
• Tweezers
• 2,500 aluminium foil discs
• 50ml silicone oil


Benefits:
• Easy to use
• Fast results
• Accurate

Standards:
• ASTM D 2732

Options:
• N/A


Dimensions:
• H: 175mm
• W: 200mm
• D: 280mm
• Weight: 3kg

Connections:
• Electrical: 220/240 VAC @ 50 HZ or
• Electrical: 110 VAC @ 60 HZ
(please specify when ordering)
