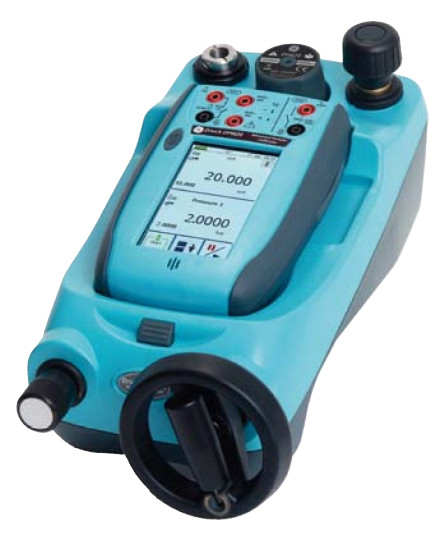

DPI 620/CE (본체)
|
|
측정
|
mA, V DC, V AC, RTDs, TCs, Ohms, Freq., Pulses
|
|
발생 / 시험
|
mA, V DC, RTDs, TCs, Ohms, Freq., Pulses
|
|
정확도
|
From 0.0025%rdg + 0.002%FS
|
|
Loop power
|
24V
|
|
화면
|
Size: 110 mm (4.3 in) diagonal; 480 x 800 pixelsLCD: Colour display with touch-screen
|
|
언어
|
영어(standard), 중국어, 불어, 독일어, 이탈리아어, 포르투칼어
러시아어, 스페인어, 네덜란드, 일본어
|
|
사용온도
|
-10° to 50°C (14° to 122°F)
|
|
보관 온도
|
-20° to 70°C (-4° to 158°F)
|
|
방수 규격
|
IP54
|
|
습도
|
0 to 90% RH Non condensing
|
|
충격/ 진동 규격
|
BS EN 61010:2001; Def Stan 66-31, 8.4 cat III, 1 m Drop Tested
|
|
EMC
|
Electromagnetic compatibility: BS EN 61326-1:2006
|
|
Electrical safety
|
Electrical – BS EN 61010 : 2001
|
|
Pressure safety
|
Pressure Equipment Directive-Class : Sound Engineering Practice
|
|
Certification
|
CE
|
|
사이즈 (L: W: H)
|
DPI 620 only: 183 x114 x 42 mm (7.2 x 4.5 x 1.7 in)
+ MC 620: ≈ 265 x 114 x 64 mm ( 10.4 x 4.5 x 2.5 in)+ PM 620: ≈ 265 x 114 x 93 mm (10.4 x 4.5 x 3.7 in)
|
|
무게
|
DPI 620 only: ≈ 575 g (1.3 lb) – battery included.
MC 620 only: ≈ 640 g (1.4 lb). PM 620 only: ≈ 100 g (0.2 lb).
|
|
Power supply
|
Lithium-Polymer battery (GE Part number : IO620-Battery);
Capacity: 5040 mAh (minimum), 5280 mAh (typical);
Nominal voltage: 3.7 V.
Charge temperature: 0° to 40°C (32° to 104°F)
Discharge temperature: -20° to 60°C (-4° to 140°F).
Note: 베터리 성능의 최상의 조건 60도보다 낮은 온도 유지
Charge/discharge cycles: >500 >70% capacity.
|
|
베터리 사용시간
|
측정 (CH1): ≈ 12 hours continuous.
Dual Function, 측정 (CH2): ≈ 7 hours (24 V Source at 12 mA)
|
|
Pressure measurement (압력 측정)Pressure module PM 620
|
|
Ranges(범위)
|
from 25 mbar / 10 inH2O to 1,000 bar / 15,000 psi
|
|
정확도
|
from 0.005%FS
|
|
Maximum pressure
|
2 x FS
|
|
Maximum working pressure
|
110% FS
|
|
방수 규격
|
IP 65 (protected against dust and jets of water)
|
|
사용 온도
|
-10 to 50°C (14 to 122 °F)
|
|
보관 온도
|
-20 to 70 °C (-4 to 158 °F)
|
|
사용 습도
|
0 to 90% RH non condensing
|
|
충격 / 진동 규격
|
BS En 61010:2001;Def stan 66-31, 8.4 cat III), 1m Drop Tested
|
|
EMC
|
BS EN 61326-1:2006
|
|
Electrical safety
|
BS EN 61010:2001
|
|
Pressure safety
|
Pressure equipment directive class SEP
|
|
Approval
|
CE marked
|
|
사이즈 / 무게
|
L.56mm, Dia.44mm, 106g maximum
|
