FEARTURES
- AIR-CALIBRATION WITHOUT TEST BLOCK
- AGC (AUTOMATIC GAIN CONTROL)
- LIGHT WEIGHT AND LARGE DIGITAL DISPLAY
- SIMPLE TO USE
- TRUE COLOR TFT DISPLAY WITH ADJUSTABLE LIGHT INTENSITY
- THICKNESS, VELOCITY, AND TIME-OF-FLIGHT MEASUREMENT
- DIFFERENTIAL MODE AND REDUCTION RATE MODE
- PULSE-ECHO AND ECHO-ECHO THRU-PAINT MEASUREMENT
- SINGLE POINT AND TWO POINT CALIBRATION
- B-SCAN TRACE FREEZE AND SAVE
- AUTOMATIC VELOCITY MEASUREMENT
- LARGE AMOUNT STORAGE MENORY
- SINGLE BOARD PCB DESIGN, RELIABLE AND SOFTWARE UPGRADE EASILY
- EASY SOFTWARE UPGRADE
- 32 BIT WINDOW 7 AND 64 BIT WINDOW 8 REPORT SOFTWARE
- ON/OFF SWITCH CONTROL POWER ON/OFF
EAST OPERATOR INTERFACE WITH DIRECT ACCESS TO ALL FUNCTIONS
SPECIFICATIONS
|
DESCRIPTION
|
TECHNICAL DATA
|
|
OUTSIDE DIMENSION
|
120×79x31 (mm)
|
|
WEIGHT
|
300 g (INCLUDING BATTERIES AND COVER)
|
|
OPERATING TEMPERATURE
|
-20~45 ℃
|
|
POWER
|
THREE 1.5V AA TYPE BATTERIES
|
|
POWER ON/OFF
|
TRUN ON/OFF BY THE SWITCH
|
|
BATTERY LIFE
|
APPROX. 60 HOURS
|
|
LCD DISPLAY
|
320×240 DOT-MATRIC TRUE COLOR TFT SCREEN
|
|
PROBE
|
DUAL ELEMENT PROBE
|
|
MEASURING RANGE
|
0.8~350 mm ( DEPENDING OF THE PROBES )
|
|
DIGITAL RESOLUTION
|
0.01 mm
|
|
OPERATING PPRINCIPLE
|
PULSE ECHO WITH DUAL ELEMENT TRANSDUCER
|
|
VELOCITY RANGE
|
650~9999 (m/s)
|
|
PULSER VOLTAGE
|
150 V, NEGTIVE PULSER
|
|
DB GAIN SETTING
|
12-52 dB
|
|
UNIT
|
inch/mm
|
|
V_TEST FUNCTION
|
AUTOMATIC VELOCITY MEASUREMENT
|
|
V-PASS CORRECTION
|
AUTOMATIC CALIBRATION
|
|
LANGUAGE
|
ENGLISH
|
|
DISPLAY MODE
|
NORMAL, MIN/MAX CAPTURE, DIFF/PR%,
B-SCAN, LARGE DIGITAL DISPLAY
|
|
DISPLAY MODE
|
DIGITAL, B-SCAN
|
|
B-SCAN SAVE
|
250 B-SCAN RECORD
|
|
MEASURE MENT POINT STORAGE
|
128,000 POINTS WITH 1000 FILE NAME
|
|
DSIPLAY LIGHT INTENCITY
|
ADJUSTABLE 8 STEPS INTENSITY CONTROL
|
|
OUTPUT
|
USB PORT, 2.0
|
|
REPORT SOFTWARE
|
DATA VIEW WITH 32/64 BIT WINDOW SOFTWARE
|
WINDOW REPORT SOFTWARE
STANDARD PACKAGE:
 |

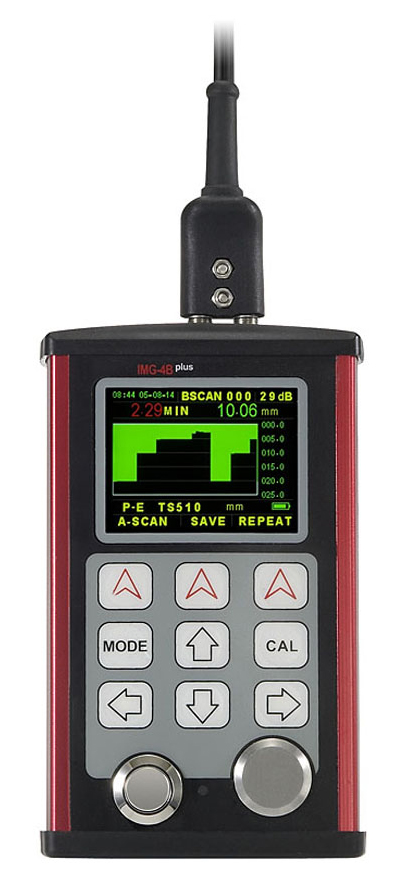

- ATG Plus T-GAUGE
- TS510 PROBE
- KY DM-DM CABLE FOR TS510
- USB COMMUNICATION CABLE
- REPORT SOFTWARE
- COUPLANT BOTTLE
- OPTIONAL PROBES SELECTION
|
.jpg) |
1. TS112
2. TS210
3. TS510
4. TS400
5. TS500
6. TS600
7. HT510
8. KYDM-DM5
9. KY DM-DMD-5
10. KY DM-DM HT-5
11. S-4 TEST BLOCK 2.5,5,10,20 mm
12. KY-5S 5 STEP PIPE BLOCK 2.5,5,5,10,20 mm
13. KY-5SM 5 STEP PIPE BLOCK 1,2,3,4,5 mm
14. KY-7S 7 STEP PIPE BLOCK 1,1.5,2, 4, 6, 8, 10 mm
|
|
TYPE
|
TS112
|
TS210
|
TS400
|
TS500
|
TS510
|
TS600
|
HT510
|
|
FREQUENCY
|
1MHz
|
2 MHz
|
10MHz
|
5MHz
|
5MHz
|
5MHz
|
5MHz
|
|
CRYSTAL SIZE
|
12 mm
|
10 mm
|
5 mm
|
5 mm
|
10 mm
|
10 mm
|
10 mm
|
|
MEASUREMENT
|
2-200 mm
|
2-250 mm
|
0.6-40 mm
|
0.8-60 mm
|
1.0-350 mm
|
2-60 mm
|
3-80 mm
|
|
TEMPERATURE RANGE
|
-10 TO 70 C
|
-10 TO 70 C
|
-10 TO 70 C
|
-10 TO 70 C
|
-10 TO 70 C
|
-10-150 C
|
10-300 C
|
PROBE CABLE
