tritan365
Tritan™ 365 Series NDT lamps feature three ultra- hi-flux UV-A-LEDs for inspection, plus a convenient white light LED to illuminate dark work areas.
Their broad-beam configuration provides an extremely wide coverage area, while a compact head design allows access into areas inaccessible to larger UV inspection lamps.
TRITAN™ 365 Broad-Beam UV-A Lamp
Choice of one high-intensity model with a nominal steady-state UV-A intensity of 9,000 µW/cm2 or two standard-intensity
models, both with a maximum UV-A intensity of less than 5,000 µW/cm2 at 15 inches (38 cm).
Large 4 inch (10 cm) diameter coverage area at 15 inches (38 cm), with a minimum UV-A intensity of 2,000 µW/cm2.
Low visible light emission - less than 2 foot-candles (22 lux)
Grip-mounted, three-way rocker switch (white light/off/UV) for easy control of light sources.
Built-in fan keeps LEDs cool to maintain optimum light output during extended use.
Rubber bumper with Borofloat® glass lens protects LEDs from damage.
Modular construction for easy servicing in the field.
Choice of replaceable heavy-duty cord 8 foot (2.4 m) or 20 foot (6.1 m) AC power cord.
Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.
Certificate of compliance for both output and wavelength measurements is supplied with each lamp.

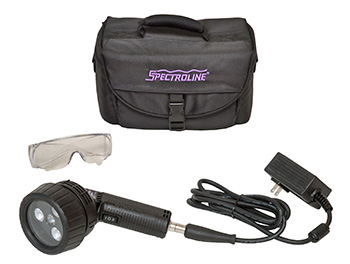

UV-absorbing spectacles and soft carrying case included.
| Technical Data |
| Model |
Nominal steady-state V-A (365 nm) intensity at 15 inches (38 cm) * |
Visible light measurement |
Diameter of UV-A coverage area at 15 inches (38 cm) |
| TRI-365HB - High intensity, with clear filter |
9,000 µW/cm2 |
<2 foot-candles (22 lux) |
4 inch (10 cm) |
| TRI-365DB - Standard intensity, with clear filter |
<5,000 µW/c2 maximum** |
<2 foot-candles (22 lux) |
4 inch (10 cm) |
| TRI-365DBB - Standard intensity, with integral black light filters |
<5,000 µW/c2 maximum** |
<2 foot-candles (22 lux) |
4 inch (10 cm) |
| Light Source: |
3 UV-A LEDs, 1 White Light LED |
| Lamp Style: |
Pistol grip |
| Lamp Head Diameter: |
3.25 in. (8.25 cm) |
| Length: |
8.0 in. (20.3 cm) |
| Weight: |
1 lb. (454 g) |
| White Light LED Intensity: |
400 foot-candles (4,306 lux) |
| Power Requirements |
| AC lamp: (TRI-365DB, TRI-365DBB, TRI-365HB) |
120VAC |
| AC/DC lamp: (TRI-365MDB, TRI-365MDBB, TRI-365MHB) |
120VAC/12VDC |
| Battery Pack |
| Type: |
12V, NiMH (rechargeable) |
| Run Time: |
3.5 hours (continuous) |
| Charge Time: |
2 hours |
* All UV-A intensity readings were taken with the Spectroline® AccuMAX™ Series meter, and are factory set to the values shown
** To address aerospace industry concerns |
