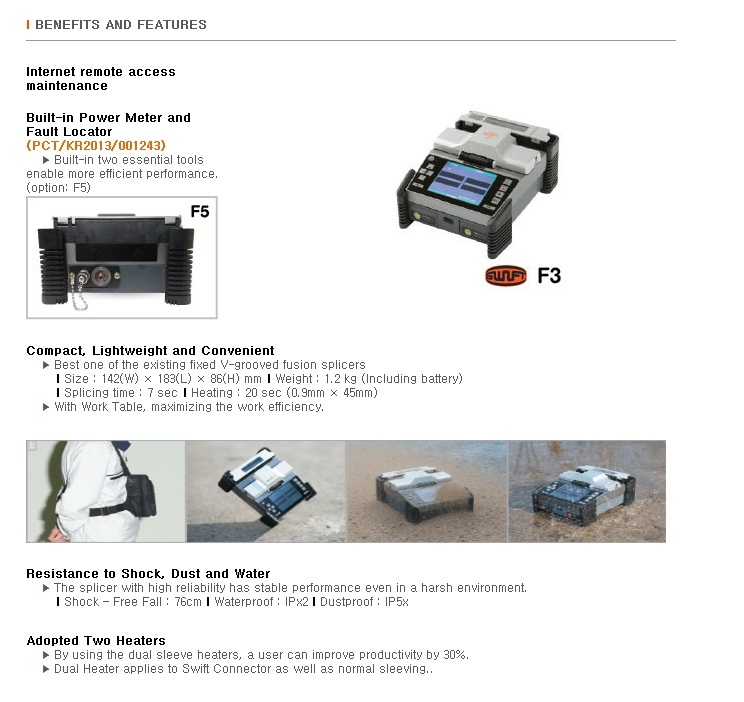

| Category |
Description |
| Fiber alignment |
Fixed V-Groove(Clad to Clad) |
| Applicable type of fibers |
0.25mm, 0.9mm, 2.0mm, 3.0mm, Indoor cable
|
| Fiber count |
Single fiber |
| Applicable fiber dimensions |
Cladding diameter: 125㎛ / Coating diameter: 250, 900㎛ |
|
Fiber setting and cleaved length
|
8.0mm |
| Splicing modes |
Splice mode: 100, Heater mode:50 |
| Typical Splice Loss |
SM: 0.03dB, MM: 0.02dB, DS: 0.06dB, NZDS: 0.06dB |
| Return loss |
> 60dB |
| Splicing Time |
Typical 7sec (Standard SM, SM-SM mode) |
| Splice loss estimate |
Available |
| Sleeve heating time |
20sec(0.9mm fiber), 70sec(Indoor, 3.0mm cable), 80sec(connector) |
| Applicable protection sleeve |
40mm,60mm(fiber), 28 or 32mm(connector) |
| Storage of splice result |
The last 2,000 results to be stored in the internal memory. |
| Tension test |
1.96N
|
| Operating condition |
Altitude: 5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%,
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
|
| Storage condition |
Temperature: -40℃~80℃, Humidity: 0~95%
|
| Dimension |
142(W)ｘ183(L)ｘ86(H)mm(Including rubber)
|
| Weight |
0.9kg(Including battery 1.2kg) |
| Viewing method and display |
Two CMOS cameras and 3.5-inch color LCD monitor |
| Fiber view and magnification |
X/Y : 170X/190X |
| Power supply |
DC Lithium polymer battery(DC 14.8V, 1650mAh x2), 100 ~ 240V AC Adapter |
|
No.of splice cycles with battery
|
Typical 140 cycles |
| Electrode life |
More than 2,500 times |
| Terminals |
USB |
