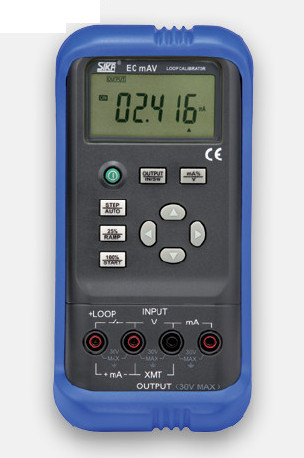

Universal pocket calibrator
Simulation and measuring of programmable test points
Digital, menu-driven value-adjustment, 6 keys and navigator
Switchable menu-languages D, GB, F, E, I
Background-lit, graphic LC-display, 160 x 160 pixel
Step-, ramp-, cycle-, HOLD- and scaling-functions
Linear- and square-function, HART-protocol, filter
Editable display-units, real-time-clock, high-speed-call (% FS)
Average value-, MIN-/MAX-, OFFSET-functions, valve-test
Serial USB PC interface (type mini B)

Signals

mA

Current 0(4)…20mA, 25 mA
Current adjustable in 0.1 mA steps

V

Voltage 0…10 V, 25 V, 50 V
Voltage adjustable in 0.1 V steps
