특징 및 소개내용
- 수용성 샘플의 신속한 삼투압 측정 (1 sample)
- 터치 스크린으로 편리한 사용
- 견고한 디자인
- 2 또는 3 point calibration
- USB, RS232로 데이터 전송 가능
- 내장 프린터 및 바코드 리더 사용 가능 (옵션사항)

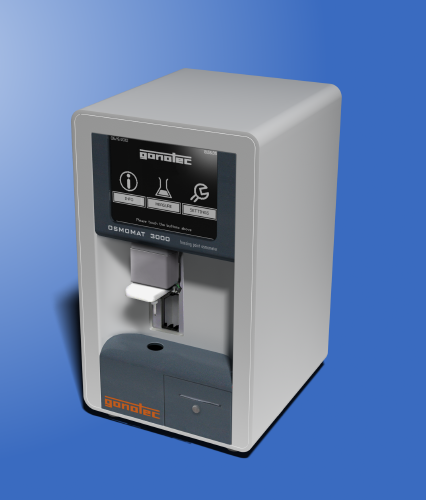

TECHIAL DATA OF THE OSMOMAT 3000
Display LCD - touch screen
Initiation of the cyst. process By means of the tip of a stainless steel needle covered with
ice crystals which is controlled automatically
cooling By means of two separate peltier
cooling systems with heat dissipation by air
Lower cooling system Electronic temperature regulation deviation <±0.1℃
Sample Volume 50㎕
Tst time 60 seconds
Sample Capacity single Sample
Units mOsmol/kg H₂O
Resolution 1mOsmol/kg H₂O
Range o up to 3000 mOsmol/kg H₂O
Communications DTE RS-232 serial port, USB and barcode scanner port
Linearity Less than ±1% from a straight line between 0 and approx.3000
mOsmol/kg H₂O
Reproducibillity ≤ ±2 digit [0..400] mOsmol/kg H₂O
≤ ±0.5%[400..3000] mOsmol/kg H₂O
Ambient temperature 10℃ to 35℃
Power supply 100 - 240V, 50/60Hz, 45 VA
Dimensions 220 x 205 x 360 mm
weight approx. 6.4kg
|
TECHIAL DATA OF THE OSMOMAT 3000
|
|
Display
|
LCD - touch screen
|
|
Initiation of the cyst. process
|
By means of the tip of a stainless steel needle covered with ice crystals which is controlled automatically
|
|
cooling
|
By means of two separate peltiercooling systems with heat dissipation by air
|
|
Lower cooling system
|
Electronic temperature regulation deviation <±0.1℃
|
|
Sample Volume
|
50㎕
|
|
Tst time
|
60 seconds
|
|
Sample Capacity
|
single Sample
|
|
Units
|
mOsmol/kg H₂O
|
|
Resolution
|
1mOsmol/kg H₂O
|
|
Range
|
o up to 3000 mOsmol/kg H₂O
|
|
Communications
|
DTE RS-232 serial port, USB and barcode scanner port
|
|
Linearity
|
Less than ±1% from a straight line between 0 and approx.3000mOsmol/kg H₂O
|
|
Reproducibillity
|
≤ ±2 digit [0..400] mOsmol/kg H₂O≤ ±0.5%[400..3000] mOsmol/kg H₂O
|
|
Ambient temperature
|
10℃ to 35℃
|
|
Power supply
|
100 - 240V, 50/60Hz, 45 VA
|
|
Dimensions
|
220 x 205 x 360 mm
|
|
weight
|
approx. 6.4kg
|
무단수집및 복재를 금합니다 .
상품정보고시
| 제품명 |
자동 삼투압측정기 ,Osmometer 3000 |
| 판매가격 |
11,220,000원 |
| 브랜드 |
Gonotec |
| 원산지 |
Germany |
| 제조사 |
Gonotec |
