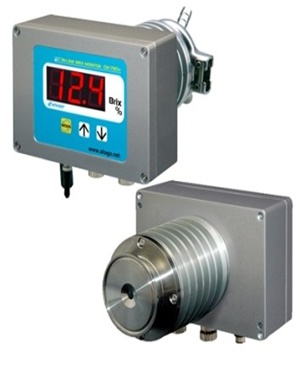

Model

CM-800α

Cat.No.

3564

Scale

Brix [*1](Automatic Temperature Compensation according to the sample liquid)Temperature

Measurement Range

Brix : 0.0 to 80.0%Temperature : 5 to 100ﾟC / 41 to 212ﾟF

Resolution

Brix : 0.01 or 0.1% (with an option to display measurements between 0.00 and 9.99% to the 2nd decimal place)Temperature : 1ﾟC / 1ﾟF

Measurement Accuracy

Brix : ±0.1%Temperature : ±1ﾟC / ±1ﾟF

Temperature compensation range

5 to 100ﾟC (Automatic Temperature Compensation)

Wetted parts temperature resistance

-30 to 150ﾟC

Ambient Temperature

5 to 40ﾟC

Indication

Brix : -2.0 to 80.5%Temperature : 0 to 130ﾟC / 32 to 266ﾟF

Light source

LED(D-line approximation)

Temperature sensor

Thin film platinum sensor

Materials in contact with the solution

Prism : SapphirePrism stage : SUS316L

Prism pressure resistance

0.98MPa（10kgf/cm2）

Output

(1) Recorder output : DC 4 to 20mAAny value between Brix 1% through 80% can be set.(2) RS-232C output

Power Supply

DC24V

International Protection Class

IP67 Dust-tight and Protected against splashing water.

Included Accessories

Power input cable (1m) [*2]

Dimensions &Weight

16.0 x 17.0 x 11.0cm, 2.4kg(Main Unit only)

Power consumption

3VA
