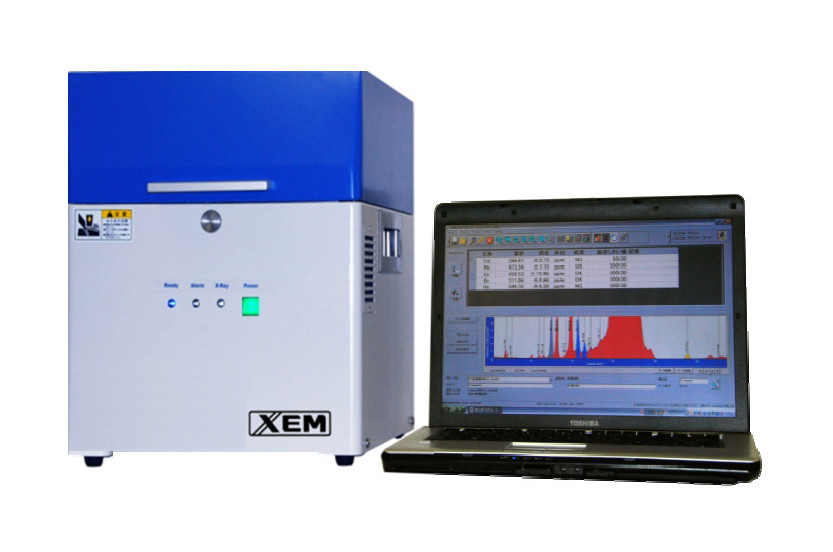

EDF05RROHS


엑스레이 금속성분분석기
Energy Dispersive X-Ray Fluorescent equipment
EDF05RROHS



Measuring chamber:
 H440mm x W300mm x D300mm weight 30Kg(net) Inside Sample area : H115mm x W270mm x D230mm
 0-50KVp, max.1.mA . Optimized to give a best performance on application HV generator
 Air cooled Oil-insulated W-target, thinned Be-windows, X-ray tube
High-performance, High-accuracy, Long-life cycle, radiation safe shielding designed
 0-50KV, max.50VA. Software controlled, variable application optimized X-ray power
1mm collimator size, Optimized Collimator setting depend on sample size and analytic Element
 5 Filter auto changer for analysis application and focusing interesting Elements
 Analysis range: S(Z=16) ~ U(92)
 Detection limits : down to 1ppm (Optional down to the 0.1ppm) ~ up to 100 wt%
 Super-SDD detector : 검출부면적 50 mm
 thick. Energy Resolution about 149 eV FWHM ( at 5,9 keV) 25 thick Be- entrance window, electrical Peltier
cooling. Digital Pulse Processor. State of the art counting electronics for highest count rate throughput at minimal
dead time and peak shift. Pile- up rejection with automatic dead time correction
 Color video system with CCD camera field of view 4x3mm or 2x1.5mm, dual magnification approx 40X or 80X
Electronic safety : The instrument has a CE registration for electrical safety, Radiation safety.
 Main supply 110V/230V 60Hz/50Hz
System Analyzer:
 High performance-High efficiency precision X-Ray Fluorescence XRF analyzer.
 MS-office package for DateMasteR and ReportMasteR option program.
 MCA(Multi Channel Analyzer) 2048 channel successive approximation ADC, spectrum board display. Optimized
application for reading and analysis spectrum.
 Auto setting and adjustment measurement condition.
 Base correction (Base background line correction). Dead time correction. Density correction
 KLM marked unknown elements analyze. Elements display function on spectra
Software features : Operating software with WINDOWS 2000/NT/XP using modern PC Technology
 Rohs Element analysis software package for Pb, Cd, Br, Cr, Hg Cl
 Halogen Elements Analysis application
 FP method analysis Fundamental Parameter Method useless standards
 Calibration method Create calibration curve for optimized application
 Report with DATABASE on EXCEL or WORD Print out or storage of user created report form.
*
