| Model |

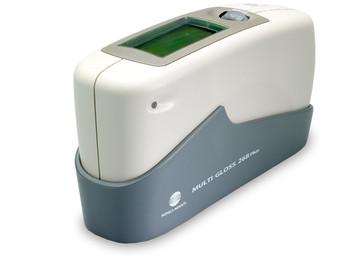

Multi Gloss 268Plus
|
| Measurement geometry |
20°, 60°, 85° |
| Size of measurement spot |
20° : 10 × 10 mm
60° : 9 × 15 mm
85° : 5 × 38 mm |
| Standard compliance |
ISO 2813, ISO 7668, ASTM D 523,
ASTM D 2457, DIN 67 530, JIS Z 8741,
BS 3900, BS 6161(Part 12) |
| Measurement range |
20° : 0.0~2,000 GU
60° : 0.0~1,000 GU
85° : 0.0~160 GU |
| Resolution |
0.0~99.9 GU : 0.1 GU
100~2,000 GU : 1 GU |
| Measurement precision |
Repeatability:
0.0~99.9 GU : 0.2 GU
100~2,000 GU : 0.2% of reading
|
Inter Instrument agreement: 0.0~99.9 GU : 0.5 GU
100~2,000 GU : 0.5% of reading |
| Memory |
999 measurements with date and time |
| Difference |
measurement Memory for 50 standard |
| Battery performance |
Approx. 10,000 measurements
(when using 1.5 V AA(R6)size alkaline battery)
|
| Measurement time |
0.5 seconds (each measurement)
|
| Power OFF |
Auto: 10~99 seconds select |
| Languages |
English, Spanish, German, French, Italian, Japanese |
| Measurement mode |
Normal mode (Sample mode, Statistics, Continuous, Basic mode), Difference mode |
| Interface |
USB2.0; Bluetooth® standard version 2.0* |
| Operating temperature / humidity range |
15 to 40°Crelative humidity 85% or less (at 35°C) with no condensation |
| Operating temperature / humidity range |
-10 to 60°C
relative humidity 85% or less (at 35°C) with no condensation |
| Power supply |
1.5 V AA(R6)size alkaline battery; via USB Port |
| Dimensions (W x H x D) |
155(W) × 73(H) × 48(D) mm |
| Weight |
400 g |
