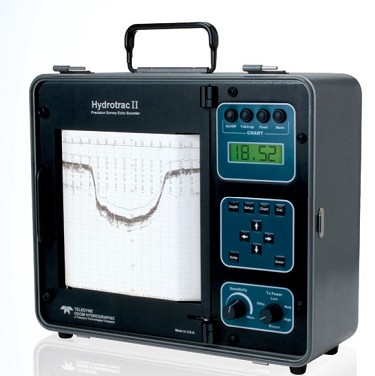

G E N E R A L S P E C I F I C A T I O N S
Frequency Agile
• Operator selectable through menu – 24, 28,
33, 40, 100, 120, 200, 210 and 340 kHz
Output Power
• 600 watts
Power Requirement
• 11-28 V DC
Resolution
• 0.1 ft / 0.01m
Accuracy
• 200 kHz – 1cm (0.1% of depth value (corrected
for sound velocity)
• 33 kHz – 10cm 0.1% of depth value (corrected
for sound velocity)
Maximum Depth Range
• 600m or 1800 ft.
Environmental Operating Conditions
• 0° - 50° C
Communication
• 2 RS232 ports or 1 RS232 and 1 RS422
• Ethernet port
• 8 bit data
• 1600 samples/ping
Printer
• High resolution 8 dot/mm (203 dpi),
16 gray shades
• 216mm (8.5 in) wide thermal paper
• External ON/OFF switch
• Paper advance control
Dimensions
• 368 mm (14.5 in) H x 419
W x 203 mm (8 in) D
Weight
• 22.5 lbs (10.2 kg)
Display Panel Layout
• 4 Line x 20 Character display
• OFF/STBY/LOW/MED/HI Power Settings
• Chart ON/OFF with LED inside
• Chart Advance
• Sensitivity
• Chart Feed
• Separate Panel Overlays for
• Display and Chart controls
• Keypad (arrow keys)
• Power
• Gain
Sensor I/O
• GPS
• Annotates chart
• Embeds position in Ethernet packet
• PPS
• Embeds UTC time in output string
• MRU
• Heave corrects data
• Outputs MRU data in Ethernet packet
• Remote Display
• RS 422 interface
Internal GPS with WAAS differential
corrections and PPS reference signal
• 16-Channel, L1(1575.42 MHz) GPS receiver
• SBAS (WAAS and EGNOS) supported
• Position Accuracy: 0.63 meters, CEP 50%
(24hr static)
• 1.31 meters, 95% (24hr static)
• Typical dynamic accuracy 3-5 meters
• Time (PPS): +/ 62ns synchronized to UTC time
• Standard NMEA0183 output message
Features
• 8.5 in / 216mm thermal printer (fax paper)
• Annotation printed on chart
• LCD display (1 in. high)
• Sealed keypad controls
• Manual/remote mark command
• Auto scale change (phasing)
• Separate adjustment for power and
pulse width
• External GPS input
• Heave input from motion sensor
• Integrated OEM DGPS receiver
• UTC time stamp capability
• TVG curve for side scan and bathymetry
• Output: NMEA, ECHOTRAC, DESO 25, etc.
• Waterproof (with front cover in place)
• Fix mark annotation: date, time, fix no., depth
and GPS (if input)
• Flash memory upgradeable
• Waterproof DB9 connector serial ports
(standard serial interface cables)
• Built-in simulator
• Serial port function test
• Robust firmware upgrades by SD Card
• E-chart Software included
• Operation and installation manuals provided
on CD
Options
• 200 kHz or 340 kHz side scan transducer
• Remote display
