200 × 1.5 / 2 ML의 마이크로 튜브에서 15 또는 50 ml의 튜브에 이르기까지 크고 작은양의 샘플을 집중하기위한 컴팩트하고 빠르고 환경 친화적 인 진공 농축기, A compact, fast and environmentally friendly vacuum concentrator, Ideal for concentrating large or small samples in amounts ranging from 200 x 1.5/2 ml microtubes to 15 or 50 ml tubes

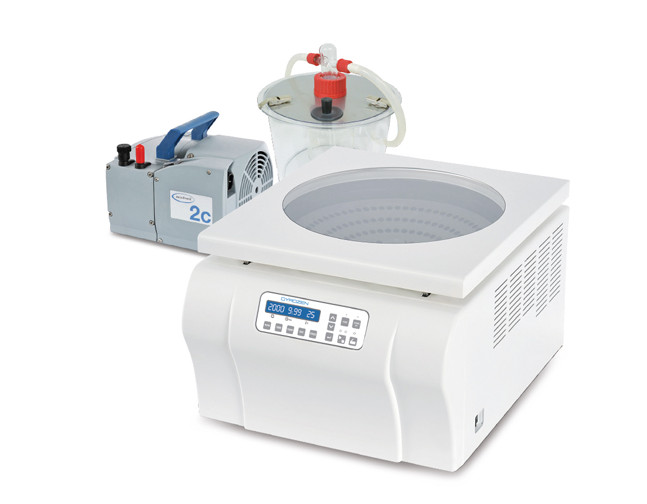

MaxiVac Basic is designed with an automatic system that includes timer stop/start functions with full programming and storage of all operating parameters, such as vacuum levels, chamber temperature and drying times. Supplied complete with a Diaphram vacuum pump to 7 mBar, DC drip catcher and ice cube container unit and all connectors, hoses, clips, and multi-purpose micro rotor for 200 x 2.0 ml microtubes. The performance can be increased by adding ice cubes around the drip catcher to increase the speed of evaporation.
Technical Specifications
MaxiVac Basic
Cat. No.
GVS-MaxiVac Basic
Auto/start stop
Yes
Timer function
Pressure readout
0.001~1,000 mBar
RPM adjustable
0~2,000
Centrifuge Dimension (W x D x H, mm)
380 x 450 x 1,000
Heating Range (℃)
+5~+80
Pump down capacity (L/min)
37
Pump capacity
7 mBar
Power consumption, Centrifuge only (W)
2,500
Voltage (V/Hz)
230/50~60
