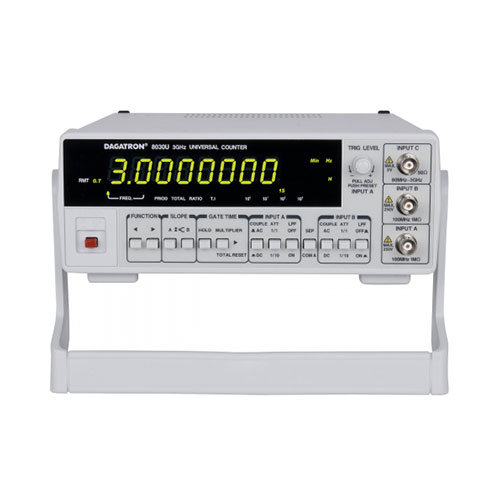

Display
|
9 digit green LED display , Overflow , Gate time ,
|
|
mHz , Hz , kHz , MHz , nS , uS , mS , S , HOLD
|
|
주파수 측정
|
범위(Range)
|
A , B Input : 0.1 Hz to 100 MHz , C Input : 80 MHz ~ 3.0 GHz
|
|
게이트타임(Gate Time)
|
0.01 Sec , 0.1 Sec , 1 Sec , 10 Sec
|
|
분해능(Resolution)
|
1 nHz ~ 10 Hz
|
|
오차(Accuracy)
|
± Resolution ± Timebase Error ± 1 Count
|
|
입력 특성
|
입력(Input)
|
A Input , B Input , C Input
|
|
감도(Sensitivity)
|
A , B Input : 30 mVrms
|
|
C Input : 25 mVrms (80 MHz ~ 150 MHz)
|
|
20 mVrms (150 MHz ~ 2.0 GHz)
|
|
60 mVrms (2.0 GHz ~ 3.0 GHz)
|
|
임피던스(Impedance)
|
A , B Input : 1 MΩ , C Input : 50 Ω
|
|
최대입력전압
|
A , B Input : 250 Vrms , C Input : 3 Vrms
|
|
감쇄기(Attenuator)
|
A , B Input : x1 , x10
|
|
Slope A , B
|
+ , - Selectable
|
|
Trigger A
|
Preset or Variable
|
|
저역(Low Pass) Filter
|
A , B Input : 100 kHz , -3 dB
|
|
입력 A 기능
|
주기(Period)
|
Range : 10 mSec ~ 10 Sec , Resolution : 1 pSec ~ 1 nSec
|
|
Accuracy : ± Resolution ± Trigger error ± 1 count
|
|
누적계수(Totalize)
|
Range : 5 Hz ~ 10 MHz , 최대숫자표시 : 0 to 999999999(Max.)
|
|
|
|
Range : 10 mSec ~ 10 Sec
|
|
|
Time Interval
|
L.S.D. Display : 100 mSec
|
|
비교 기능
|
(A to B)
|
Resolution : ± L.S.D. ± Tigger Error
|
|
(Input A , B)
|
|
Accuracy : ± Resolution ± 1 count
|
|
|
Ratio(A/B)
|
Range - A Input : 0.1 Hz ~ 100 MHz
|
|
|
B Input - 5 Hz ~ 100 MHz
|
|
|
L.S.D. Display : A x N/B (N = 1 ~ 1000)
|
|
|
Accuracy : ± 1 Count of A ± B Trigger Error ± A
|
|
|
내부 타임 베이스
|
Frequency : 10 MHz TCXO
|
|
Aging Rate/year : ± 1ppm (at 25℃)
|
|
Temp. Stability : ± 2.5ppm (at 0 ℃ ~ +50
|
