Indicator Type
Neon Indicator
Digital Reading

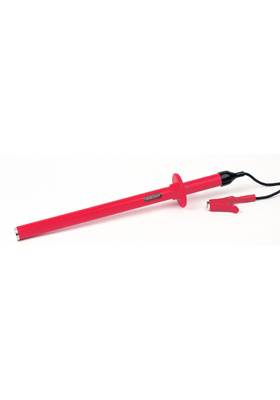

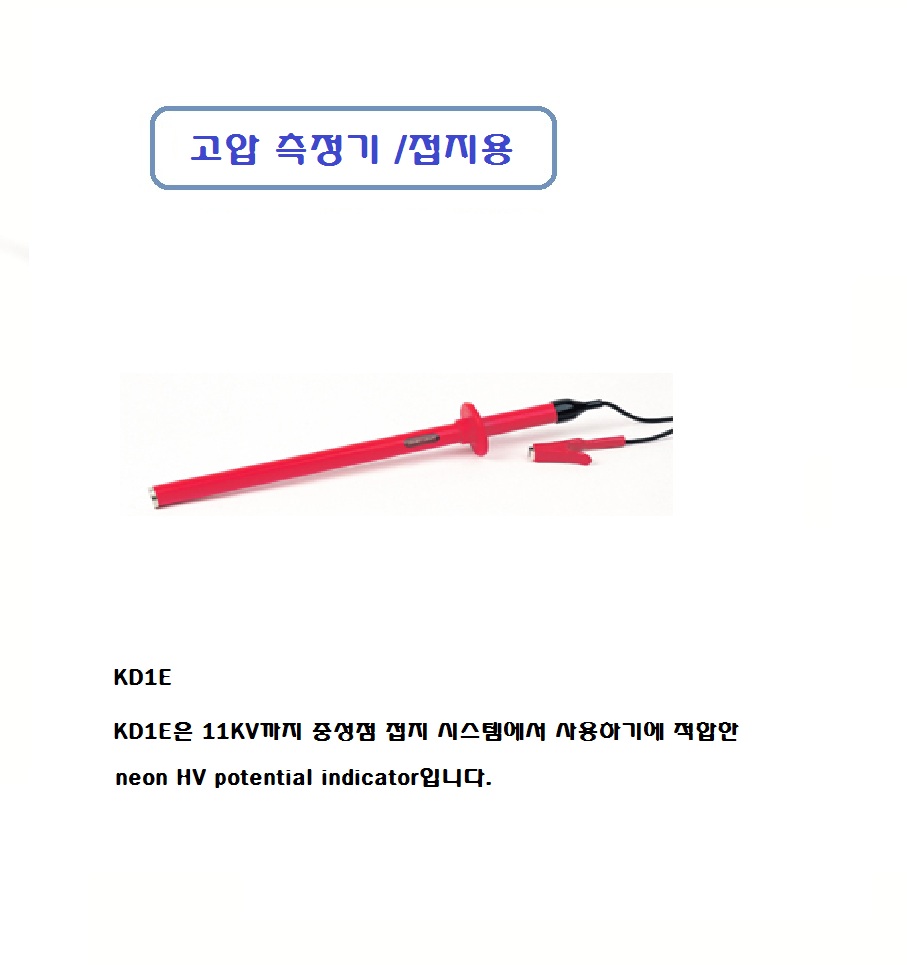

KD1E
KD1E/19
KD1E/19S
KD1E/22
KD1E/33
KD1E/15D
KD1E/33D
Maximum System Voltage
11kV
19kV
22kV
33kV
15kV
Maximum Voltage to Earth
6.6kV
12.5kV
8.6kV
Threshold Voltage
300V
Measuring Range
0.00kV-8.6kV
0.00kV-19.0kV
Resolution
10V
100V
Sensitivity
AC/DC
AC Only
Circuit Current
(IEC 61234-2)
2.3mA nominal
@ 6.6kV
0.7mA nominal
@ 11kV
0.9mA nominal
3.5mA nominal
@ 12.5kV
1.1mA nominal
@ 19kV
0.5mA nominal
@ 8.6kV
Dielectric Leakage Current
7μA nominal
@ 13.8kV
11μA nominal
@ 22.8kV
12μA nominal
@ 26.4kV
17μA nominal
@ 40kV
9μA nominal
@ 18kV
17μA nomina
Length (mm)
330
665
670
600
Diameter (mm)
25
Handle Length (mm)
105
90
250
235
Hand Guard Height (mm)
