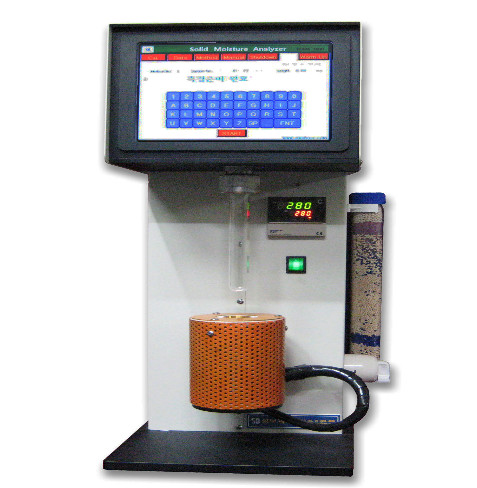

모델: DSMA-1600 Moisture Analyzer

◇ 고형물의 수분 측정
◇ 측정범위 : 0.005 ~ 2% in solid
◇ 응용분야 : 폴리머 칩





특징

◇ Moisture content masurement of solid samples ◇ Number of Port : 1 ◇ Measuring Range : 0.005 ~ 2% in solid ◇ Accuracy : < ±0.005% ◇ Sample Volume : 1 ~ 20g ◇ Peak Value : Auto holding & Digital display ◇ Digital microprocessor ◇ LCD Display















   규격

◇ Vacuum Gauge      - Continuous reading with unrivaled resolution      - No temperature setup necessary      - Applied vacuum : 4 - 10-3 torr      - Output : 0 ~ 1V recorder output ◇ Furnace with Control      - Temp range : RT ~ 300 ℃ ◇ Display      - PID Control      - Timer & Alarm attached.      - Sensor : CA      - Power : 220V, 150W ◇ Vacuum Pump      - Two stage      - Pumping speed : 60 L/min      - Ultimate pressure : 1 x 10-3 torr(Pa)      - Motor speed : 1,720 rpm      - Oil capacity : 250 cc      - Recommended oil : MR-100      - Weight : 11kg      - Ambient operating temp. range : 7 ~ 40 ℃      - Overall dimensions : 162(W) x 346(L) x 233(H) mm
