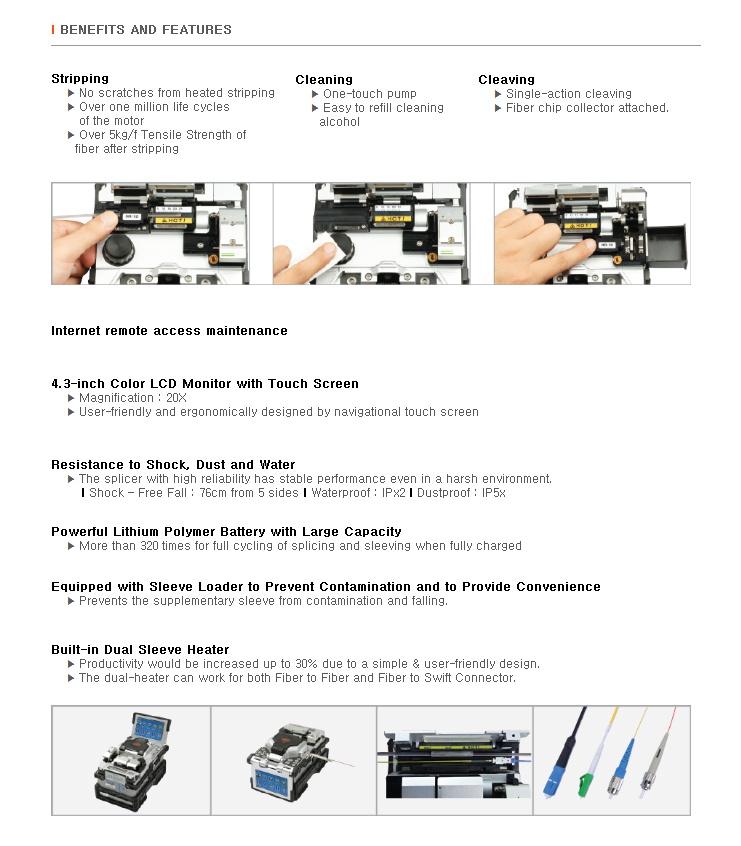

Category
|
Description
|
| Fiber alignment |
Fixed V-Groove(Clad to Clad)
|
| Applicable type of fibers |
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655)
|
| Fiber count |
Single fiber, 2~12 fiber |
| Applicable fiber dimensions |
Single: Cladding diameter 125㎛, Coating diameter 250, 900㎛
Ribbon: Cladding diameter 125㎛, Ribbon fiber thickness 0.27 to 0.32mm
|
|
Fiber setting and cleaved length
|
8mm |
| Splicing modes |
Splice mode: 100, Heat mode: 50 |
| Typical Splice Loss |
SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB |
| Return Loss |
> 60dB |
| Splicing Time |
Typical 20sec with standard SM(ITU-T G.652) |
| Splice loss estimate |
Available |
| Sleeve heating time |
30sec, 50sec |
| Applicable protection sleeve |
40, 60mm(fiber) |
| Storage of splice result |
The last 10,000 results to be stored in the internal memory. (Image 10,000 results) |
| Tension test |
2N / 4,4N(Option)
|
| Operating condition |
Altitude: 5,000m above sea level, Temperature: -10℃~50℃,Humidity: 0~95%,
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
|
| Storage condition |
Temperature: -40℃~80℃, Humidity: 0~95%
|
| Dimension |
142(W)ｘ225(L)ｘ132(H)mm(Including rubber)
|
| Weight |
2.5kg(Including battery 3.2kg) |
| Viewing method and display |
Two CMOS cameras and 4.3-inch color LCD monitor with touch panel |
| Fiber view and magnification |
50X |
| Power supply |
DC Lithium polymer battery(DC 14.8V, 8400mAh), 100~240V AC Adapter |
|
No. of splice cycles with battery
|
320cycle |
| Electrode life |
More than 1,000 times |
| Terminals |
USB, External power(DC 12V Available for car cigar jack) |
