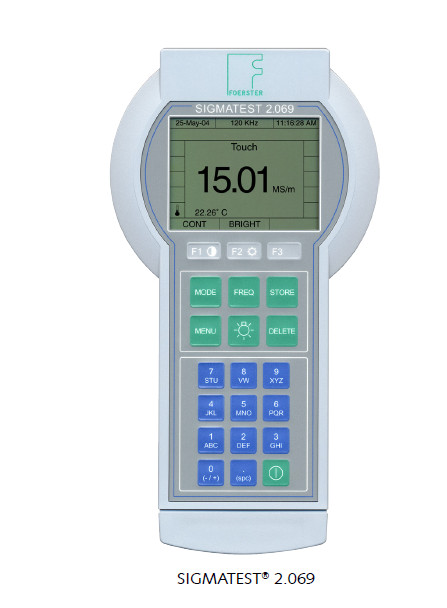

SIGMATEST® 2.069





Portable eddy current test instrument for measurement
of electrical conductivity of non-ferrous metals

Determining physical and technological material
properties
Monitoring the condition of highly stressed parts
Material-mix testing
Sorting of metals and alloys
Scrap sorting
In-process inspection in industrial, metallurgical
and metalworking plants
Quality control inspection
Aircraft maintenance inspection
Determination of heat damage
Verification of the age-hardening condition of
aluminum used in aircraft construction
•
•

Calibration Standards

The instrument kit includes a two piece conductivity
standard set for calibration prior to measurement.
The electrical conducitivity values for the two
piece standard set are approximately 4.4 MS/m
(8% IACS) and 58 MS/m (100% IACS). Calibration
using the included standards allows for measurement
with high accuracy across the entire
conductivity range. A certificate is provided for
each standard stating the electrical conductivity
values and verifying traceability to the German
National Standards Laboratory (PTB) and to
United States National Standards (NIST).

The two piece standard sets are stored inside the
bottom cap of the instrument for protection and
easy access. They can be easily removed from
the bottom cap if necessary.


Power Supply and Battery Charger

An AC adapter is available for operation from
the local AC mains supply. At the time of order,
the plug required for adaption to the local mains
supply is specified. The AC adapter is included in
all SIGMATEST 2.069 kits.
An optional battery charger is available if the
instrument is to be used in conjunction with
rechargeable batteries.
When ordering, state the operating voltage and
the destination country for the instrument so
that the correct voltage adapter is delivered.


SIGMATEST 2.069 with 14mm Probe Kit         9069305
INSTRUMENT
Consisting of:
• 1 Operating Instructions
• 1 Sigmatest 2.069 Testing Device
• 1 Probe 14mm with Handgrip
• 1 Set-down Prism
• 1 Probe Cable
• 1 Calibration Standard Set
• 5 Battery, Rechargeable, 2300 mAH nimH
• 1 Carrying Case
• 1 AC Power Supply Kit
(customer to specify the end country
destination)
• 1 External Battery Charger

SIGMATEST 2.069 with 8mm Probe Kit        9069275
Consisting of:
• 1 Operating Instructions
• 1 Sigmatest 2.069 Testing Device
• 1 Probe 8mm with Handgrip
• 1 Set-down Prism
• 1 Probe Cable
• 1 Calibration Standard Set
• 5 Battery, Rechargeable, 2300 mAH nimH
• 1 Carrying Case
• 1 AC Power Supply Kit
(customer to specify the end country
destination)
• 1 External Battery Charger
