Specifications

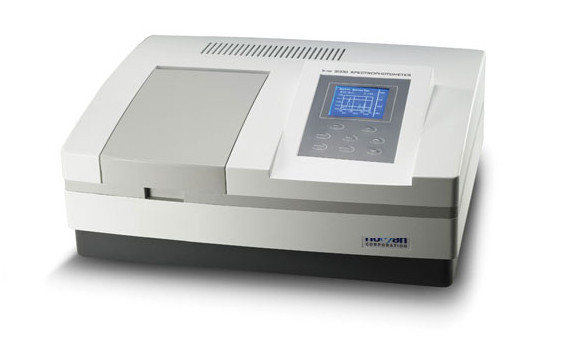

X-ma 6100 (PC)
X-ma 6300(PC)
X-ma 6100S(PCS)
Performance
Wavelength Range
190 ~ 1100 nm
a. Basic ModeAbesorbance. Transmitiance or Concentration measurementsb. Quantitartive Esrablish or use Stored calbration to measure the concentration of unknownsc. WL scanSpectrum scan of sample at any selected wavelenght range with choice of scanning speed and wavelength intervald. KineticsMeasurement of absorbance changing vs. time with reaction rate calculation functione.Multi WavelengthMesasurement at multiple wavelengths to analyze and determine the composition of the mixturesf. DNA/proteinCalculation if concentration and DNA purity. Ratio at other wavelengths can be measured
Spectral Bandwidth
1.8 nm
1.0 nm
0.5/1/2/4nm
Optical System
Double beam, Grating 1200 lines/mm
Wavelength Accuracy
±0.3nm
Wavelength Repeatability
0.2nm
Scanning Speed
Hi, Med, Low, Max 3000nm/min
Photometric Accuracy
± 0.3%T
Photometric Repeatability
± 0.15%T
Photometric Range
-0.3 to 3.0A , 0 to 200%T, 0 to 9999Conc.
Stray Light
± 0.05%T
Stability
±0.001A/h
Display
LCD(100x78mm) or PC Model
Baseline Flatness
±0.001A
Optional Accessories
Sample Compartment
-Auto 8 cell holder (STD)
- 3, 5, 10 cm 4-cell holder- Water-jacket cell holder - Micro cell holder - Ambient sipper/ Peltier system - Test tube holder- Printer- Cell
Light Source
Halogen &Deuterium lamp(Pre-Aligned)
Output
USB Port &Parallel Port (Print)
Power Requirement
220/110V, 50/60Hz
Dimensions (WxDxH)
600x450x200mm
Weight
22kg
