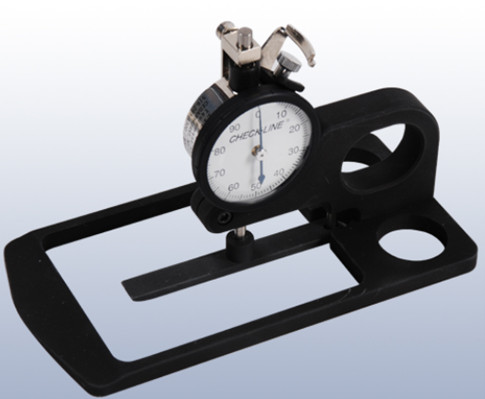

WARP TENSION METER (구부림장력계)




An easy-to-operate measuring foot and small “scooping”
frame provide a quick and easy way to check warp tensions.
Its 0-100 units scale and foot pressure have been carefully
chosen to provide comparative warp tension measurements
for most applications.
Special foot pressures are available where the standard foot
pressure is too high or too low.
FEATURES
- Dependable, lightweight, small, rugged and easy-to-use.

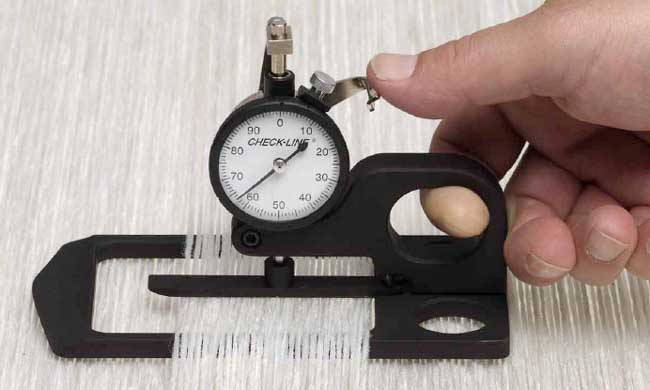

- A thumb-actuated mechanism lifts the pressure foot for
easy insertion into the warp and allows a scooping action
by the bottom frame to select the number of ends to be
measured.
- A large, 2-3/4" wide measuring foot, provides even,
perpendicular pressure for highly repeatable readings.

Specifications

Calibration     0–100 empirical units
Resolution     1 unit
Dial Face Diameter   1-1/2" (38mm)
Foot Pressure     240 g ±10 at 1 revolution of
                                pointer

Dimensions

Frame       5-7/8" x 3" (150 x 176mm)
Height      3-5/8" (92mm)
Weight     8.5 oz (240 g)
Frame Material   Aluminum alloy

  Note: Loom warp tension readings are best made when the loom is stationary.
Readings made while the loom is operating will be difficult due to the wide tension
fluctuations.
